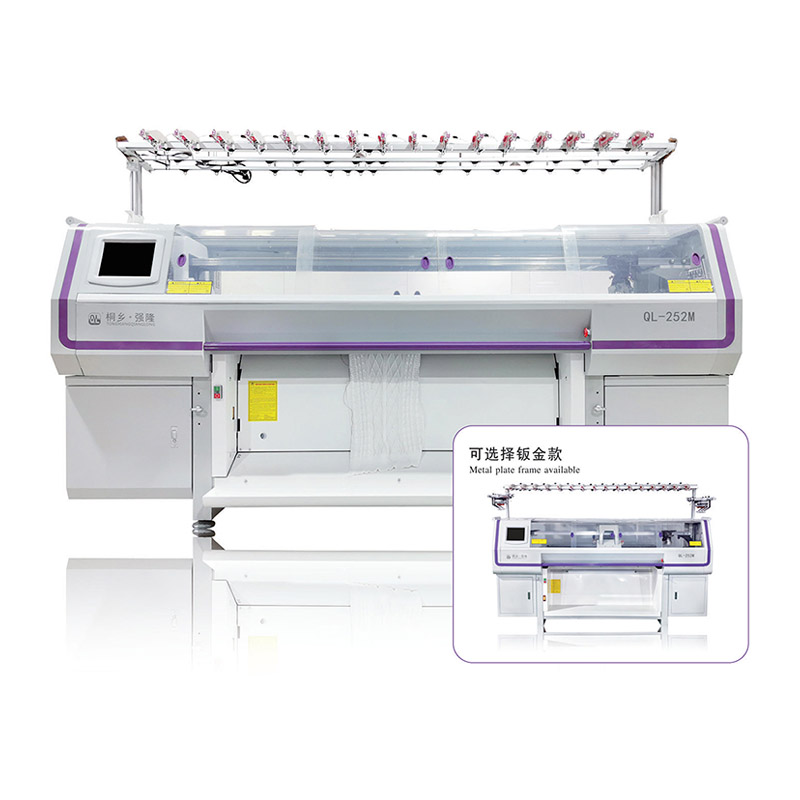

Double System Computerized Flat Knitting Machine Series

Model

QL-252M QL-260M QL-280M

Gauge

3G、3.5G、 5/7G、 5G、7G、8G、9G、10G、12G、14G、16G、18G

Carriage

Double system, double carriage double system (optional);

Knitting range

52"/60"/66"/80"/100"

Comb system

Zero finishing yarn comb system; regualar comb system

Knitting system

Double system, double carriage double system (optional); Digital technology is adopted to realize needle turning, hole picking, eye lifting of flat knitting machine. No dotted jacquard, full needle, open stitch, dark stitch and other regular pattern weaving functions.

Knitting speed

Maximum speed is 1.8 m's without load, with 128 sections of programming speed.

Stitch density

128 Section electronic control, using subdivision technology; The stepping motor controls and adjusts the density, and the adjustable range is 0-650

Dynamic stitch

Using high speed stepping motor, multi-stitch function can be achieved in one line.

Transfer

Can be turned forward and back at the same time, not affected by the direction of the head, minute knitting.

Racking system

Motor driven, 1/2 and 1/4 needle in any position; Maximum 2 inches on one side.

Sinker

The stepping motor can adjust the movable sinker, which can be adjusted according to different fabrics to achieve a variety of needling and needling effects

Quickly turning

Intelligent switching braiding system improves machine weaving efficiency

Take-up device

128 Sections of automatic control, time division adjustment, can be automatically identified according to the width of the pattern automatically adjust the tension, can meet a lot of local weaving.

The pulling force requirement of the pattern makes the pulling force of the fabric evenly distributed and the strength is reliable.

Yarn feeder device

1.5g -10G Adopts roller feeding device to accurately control the tension of the yarn and ensure the consistency of the whole woven piece quality;

12G-18g adopts the yarn storage device to accurately control the tension of the yarn and ensure the consistency of the whole woven piece quality.

Safety device

The whole machine is covered to reduce noise and dust, infrared safety device, emergency stop device, cut off power device, indicator light alarm device.

Refueling device

Automatic refueling: control the refueling time and frequency by setting the time.

After the time is up, lubricate the long needle spring needle on the needle plate automatically to reduce the wear of the machine and increase its service life.

Stop motion

Automatic stop for yarn breaking, yarn knot, cloth winding, firing pin, number of pieces completed, overload, program error, etc.

Control system

Screen uses LCD industrial display, touch screen graphical interface, transmission mode uses USB and network, which can be used to store a large number of pattern files, and can be called out and used at any time according to production needs.

Monitoring screen: it can display all kinds of working parameters and knitted mesh value, and it can be adjusted at any time when the machine is running, which is convenient for operation and time saving to the greatest extent.

Plate - making system and control system (software part) SH upgrade is convenient. Support a variety off lower format CNT, HCD, 000, etc.

Support for multi-language operating versions (Chinese, English, Russian, and other languages)

Data input

Through a USB drive or computer connection.

Blackout memory function

Advanced CMOS technology is used to realize power failure memory and incoming call recovery weaving functions.

Network function

High-speed ETHERNET network theoretically enables unlimited computer connection, data uploading and sharing, and real-time monitoring.

Power supply unit

Voltage: AC220/380V; Frequency: 50HZ/60HZ; Power: 1.5KW

Size and weight of machine

QL-252M: 2700*800*1700MM; Weight around: 830KGS

Specification and configurations should be subjected to the contract with customer
