Product Description

Single- double system flat knitting machine adopts digital technology, which can realize the functions of transfer, tuck, hole picking, jacquard, needle narrowing, and other regular pattern knitting functions of the flat knitting machine. The machine can automatically scan the knitting file before starting knitting and automatically select the system suitable for the pattern, thus genuinely realizing the fast rotation of the machine carriage with high speed and high efficiency.

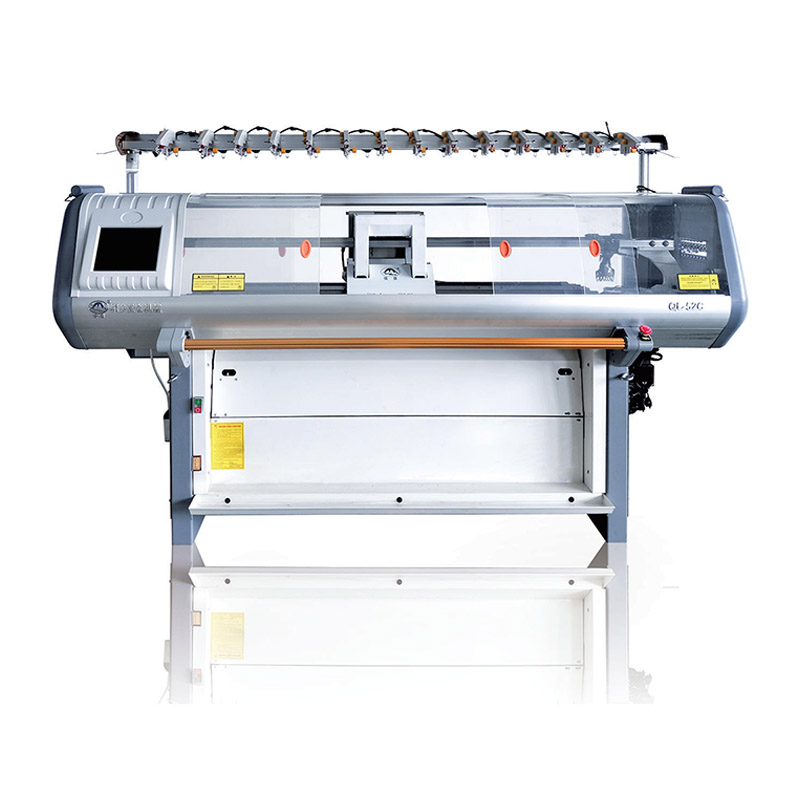

Single-Double System Computerized Flat Knitting Machine Series

Product Specification

Model	QL-1S52M QL-1S60M QL-1S80M
Gauge	7G、9G、12G、13G、14G、15G、16G
Carriage	Single-double system
Knitting range	44"/52"/80"/100"
Comb system	Zero finishing yarn comb system; regualar comb system
Needle bed	Milling type needle bed or insert type needle bed
Knitting system	Single carriage single-double system, use of digital technology to achieve the horizontal machine needle, pick hole,lifting eye, no dotted line lift Flower, siping jacquard, open stitch, dark stitch and other regular pattern weaving functions.
Knitting speed	Maximum speed is 1.8 m's without load, with 128 sections of programming speed.
Stitch density	128 Section electronic control, using subdivision technology; The stepping motor controls and adjusts the density, and the adjustable range is 0-650
Dynamic stitch	Using high speed stepping motor, multi-stitch function can be achieved in one line.
Transfer	Not affected by the direction of the carriage.
Racking system	Servo motor drive, shake 1/2 and 1/4 needle in any position; Maximum 2 inches on one side.
Quickly turning	Intelligent switching braiding system improves machine weaving efficiency
Take-up device	1128 Sections of automatic control, time division adjustment, can be automatically identified according to the width of the pattern automatically adjust the tension, can meet a lot of local weaving. The pulling force requirement of the pattern makes the pulling force of the fabric evenly distributed and the strength is reliable.
Yarn feeder device	7G-9G: yarn feeder device; 12G-16G: yarn storage device. Accurate control of yarn tension ensures the quality and consistency of the fabric.
Safety device	The whole machine is covered to reduce noise and dust, infrared safety device, emergency stop device, cut off power device, indicator light alarm device.
Stop motion	Automatic stop for yarn breaking, yarn knot, cloth winding, firing pin, number of pieces completed, overload, program error, etc.
Control system	Screen uses LCD industrial display, touch screen graphical interface, transmission mode uses USB and network, which can be used to store a large number of pattern files, and can be called out according to production needs at any time. Monitoring screen: it can display all kinds of working parameters and knitted mesh value, and it can be adjusted at any time when the machine is running, which is convenient for operation and time saving to the greatest extent. Plate - making system and control system (software part) SH upgrade is convenient. Support a variety off lower format CNT, HCD, 000, etc. Support for multi-language operating versions (Chinese, English, Russian, and other languages)
Data input	Through a USB drive or computer connection.
Blackout memory function	Advanced CMOS technology is used to realize power failure memory and incoming call recovery weaving functions.
Network function	High-speed ETHERNET network theoretically enables unlimited computer connection, data uploading and sharing, and real-time monitoring.
Size and weight of machine	SQ: 24007801900MM; Weight around: 692KGS
Specification and configurations should be subjected to the contract with customer
